Operators for sectional doors and sliding gates



Operators for industrial gates sectional-sliding-folding and others





Manufactured in two models:
Singlephase (A) and threephase (B) with rotative limit-switch and manual device.
Compact and easy to install.
Many possibility of utilization.

GOOD for all type of industrial gate.

MANUAL DEVICE by fast lever.

NOT-REVERSIBLE aluminium reducer.

FAN COOLED motor with thermal protection.

STEL-SCREW and bronze-gear.

Brochure download
Manual download

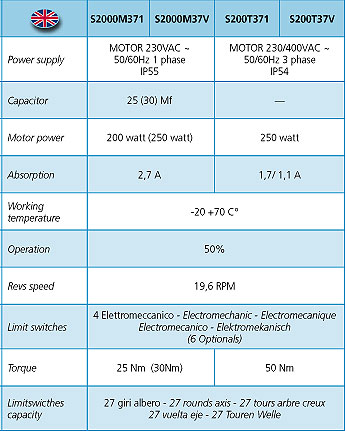

   Technical features


Sectional door operator





The Operator S2000 is designed to motorize industrial sectional door, with installation directly on the shaft of the door.

It is available also for flexible doors, sliding doors, etc. The long life of the Operator S2000 is garanted by the care of the manufacture, by the oil lubrication, and by the motor fan cooled.

The reducer not reversible grant the position of the door in opening and in closing. It is possible to install the Operator S2000 on the doors for heavy duty.

The manual release system can be effected by a lever and cable (S2000M371 - S2000T371) or chaine with
winch system (S2000M37V - S2000T37V). So it is possible to operate manually the door.

The limit switch is electrical with 4 switches, with a easy adjustement. It is possible, by request, manufacture the limit switch
with 6 switches.

Brochure download
Manual download

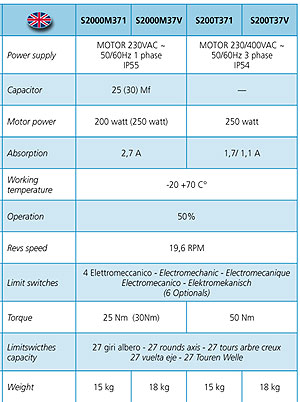

   Technical features
