Sliding rack operators heavy duty



Operators rack for sliding gates heavy duty

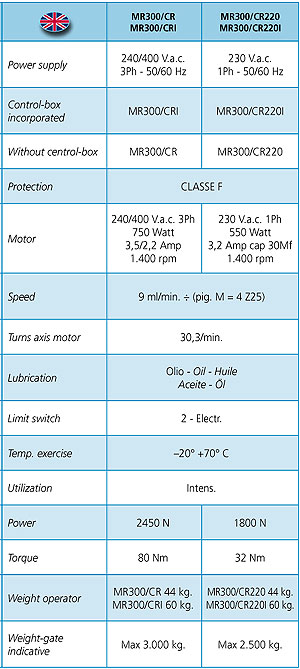

Manufactured in 4 type:

MR300/CR 3phase for gates max 3000 kg. - MR300/CRI control-box incorporated.
MR300/CR220 singlephase for gates max 2500 kg. - MR300/CR220I control-box incorporated.

Compact and easy to install with the carter fully removable painted and with key.

Versatile: with the accesories.

Safe: reducer not reversible. No need electrolock

Long life: motor 400 V. 3phase fan cooled a.c. or Singlephase 230 V - 2 limit-switches electric. Steel screw and bronze internal gear.

Confortable: transmission between motor and reducer by pulley and belt and adjustable clutch.

Emergency: manual release by fast lever.

Brochure download
Manual download

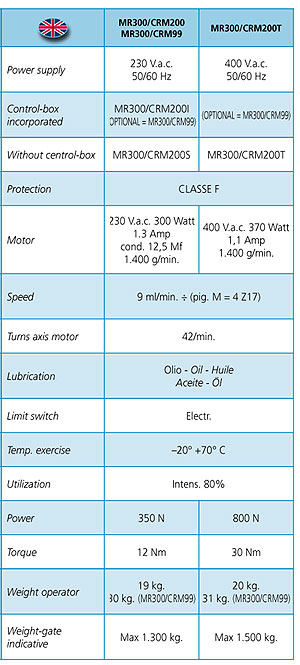

   Technical features


Operators rack for sliding gates heavy duty






COMPACT and easy to install.
VERSATILE : with the accessories.
LONG LIFE: motor 230 V.a.c. Singlephase or 400 V.
3phase fan cooled.

PRACTICAL and SAFE: reducer not reversible. No need electrolock. Limit-switches electric and control box incorporated (MR300/CRM200I) with slow down and reverse on obstacle.

CONFORTABLE : carter Polietilene with handle for manual release by key or big metallic carter (MR300/CRM99).

EMERGENCY: manual release by fast lever with key and external system optional (EPAC-SV).

Brochure download
Manual download



   Technical features
